cara reset energy atau value kwh PM2120



How to reset the energy value of PM2100

Clear screen menus/ reset energy value
         Clear screen enables you to reset energy, demand, min / max, or max demand values.

Entering Clear screen

The meter’s display screen and buttons allow you to navigate to Clear.
1. Press and hold the OK button for 2 seconds.
2. Press the Up button to select Yes.
3. Press OK.
4. Enter password. Default password is 0000.
5. Press OK.
6. Press the Down or Up button to navigate to the required parameter for clearing
the values.
7. Press and hold the OK button simultaneously for 2 seconds to exit Clear
screen.

GPS TRACKER BLYNK IOT



Bagaimana menghitung Kebutuhan Daya PLTS?

link materi : PLTS



WIRING



CARA CEK DATA MENTAH GPS NEO6 DENGAN ESP32



Assalamu'alaikum, sahabat SIMOR.

saya akan sharing bagaimana cara cek data mentah dari GPS neo6 dengan ESP32.

Pertama siapkan bahan dulu (esp32, kabel usb micro, kabel jumper, GPS neo6)

Kedua - Wiring sesuai gambar  di atas

Ketiga - Upload koding dibawah ini

#include <SoftwareSerial.h>

SoftwareSerial ss(18, 19);

void setup(){

  Serial.begin(9600);

  ss.begin(9600);

}

void loop(){

  while (ss.available() > 0){

    // get the byte data from the GPS

    byte gpsData = ss.read();

    Serial.write(gpsData);

  }

}

Keempat - Cek data di serial monitor.  (coba ditunggu hingga gps neonya kedip", sambil nunggu minum kopi)

$GPGGA,110617.00,41XX.XXXXX,N,00831.54761,W,1,05,2.68,129.0,M,50.1,M,,*42
$GPGSA,A,3,06,09,30,07,23,,,,,,,,4.43,2.68,3.53*02
$GPGSV,3,1,11,02,48,298,24,03,05,101,24,05,17,292,20,06,71,227,30*7C
$GPGSV,3,2,11,07,47,138,33,09,64,044,28,17,01,199,,19,13,214,*7C
$GPGSV,3,3,11,23,29,054,29,29,01,335,,30,29,167,33*4E
$GPGLL,41XX.XXXXX,N,00831.54761,W,110617.00,A,A*70
$GPRMC,110618.00,A,41XX.XXXXX,N,00831.54753,W,0.078,,030118,,,A*6A
$GPVTG,,T,,M,0.043,N,0.080,K,A*2C

$GPGGA,110617.00,41XX.XXXXX,N,00831.54761,W,1,05,2.68,129.0,M,50.1,M,,*42

110617 – represents the time at which the fix location was taken, 11:06:17 UTC

41XX.XXXXX,N – latitude 41 deg XX.XXXXX’ N

00831.54761,W – Longitude 008 deg 31.54761′ W

1 – fix quality (0 = invalid; 1= GPS fix; 2 = DGPS fix; 3 = PPS fix; 4 = Real Time Kinematic; 5 = Float RTK; 6 = estimated (dead reckoning); 7 = Manual input mode; 8 = Simulation mode)

05 – number of satellites being tracked

2.68 – Horizontal dilution of position

129.0, M – Altitude, in meters above the sea level

50.1, M – Height of geoid (mean sea level) above WGS84 ellipsoid

empty field – time in seconds since last DGPS update

empty field – DGPS station ID number

*42 – the checksum data, always begins with *

The other NMEA sentences provide additional information:

$GPGSA – GPS DOP and active satellites

$GPGSV – Detailed GPS satellite information

$GPGLL – Geographic Latitude and Longitude

$GPRMC – Essential GPS pvt (position, velocity, time) data

$GPVTG – Velocity made good

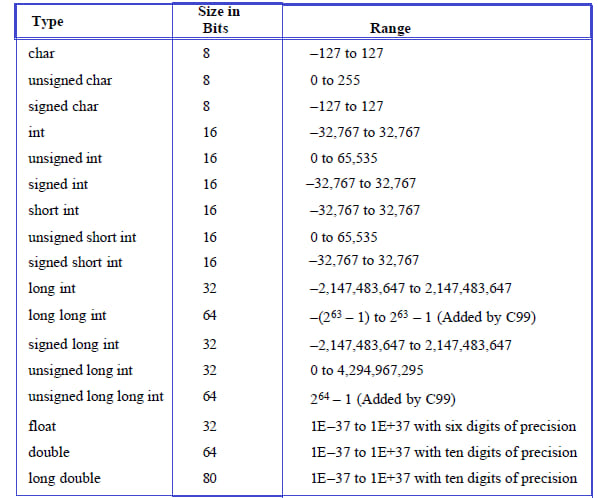

Mengenal Type Data di arduino IDE

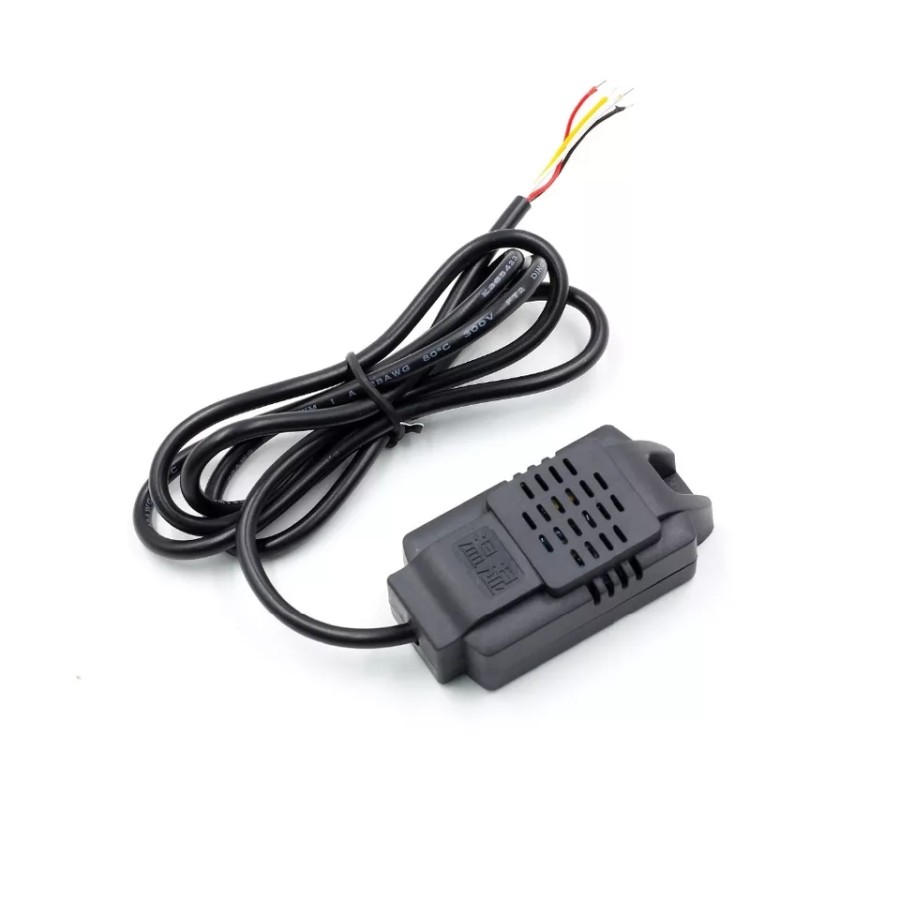

SHT20 mempunyai fitur Modbus

SHT20 adalah sensor temperatur dan kelembapan.  sensor ini memiliki protocol Modbus RTU. dan port komunikasi yang digunakan adalah port RS485.  RS485 mempunyai kelebihan bisa panjang kabel sampai 1,2km atau 1200meter. Sensor ini bekerja di tegangan 4-30V. harap hati-hati saat melebihi tegangan.

 Register Modbus SHT20

dari register diatas. jika suhu atau kelembapan tidak presisi. anda bisa koreksi di addres 0x0103 dan 0x0104. cari alat pembanding yang benar-benar akurat.

Keterangan Kabelnya SHT20

dari keterangan di atas bahwa setting parameter komunikasinya:

baudrate : 9600

Parity : None

Stop bit : 1

Berikut video cara koneksinya dan cara setting addresnya:

Semoga bermanfaat.
